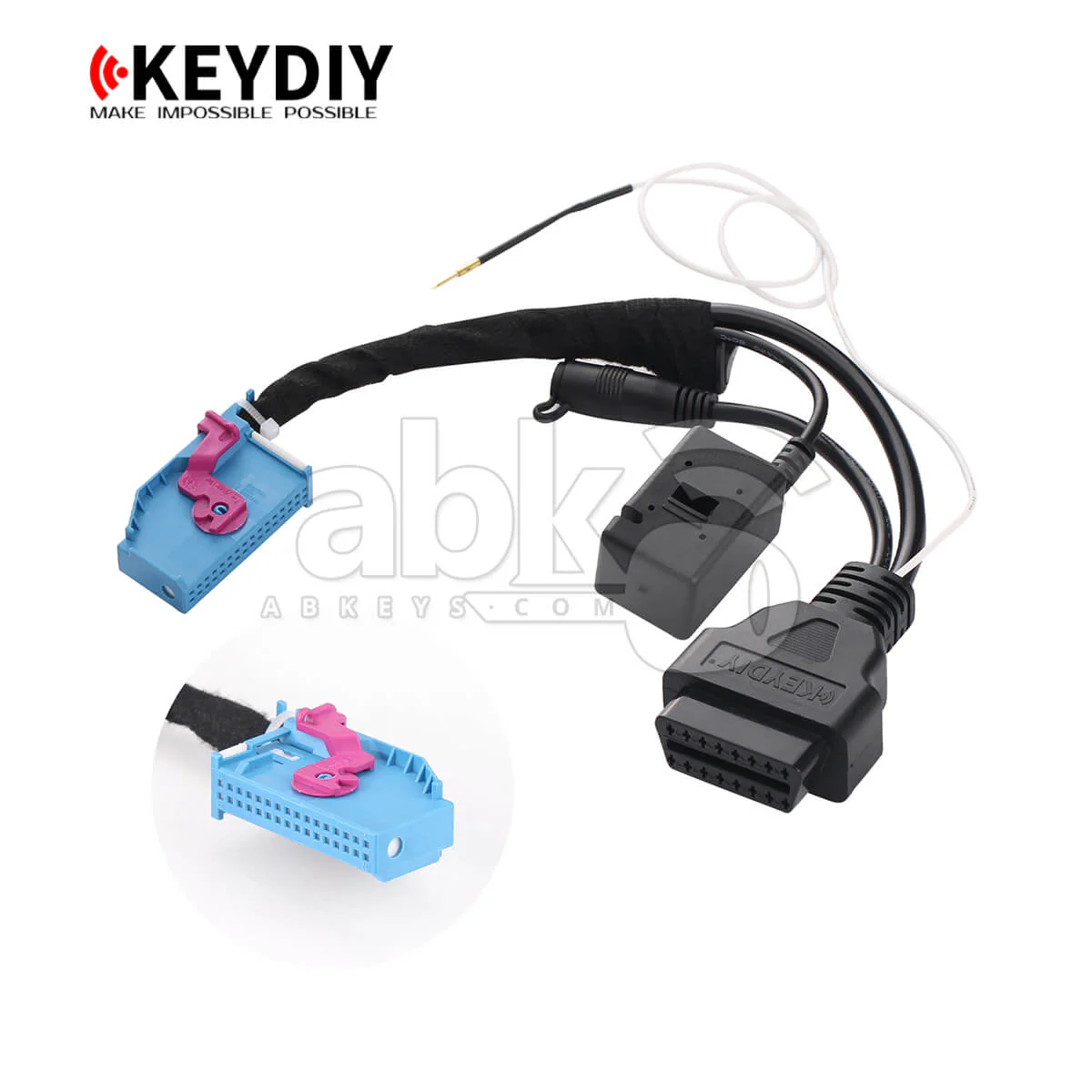

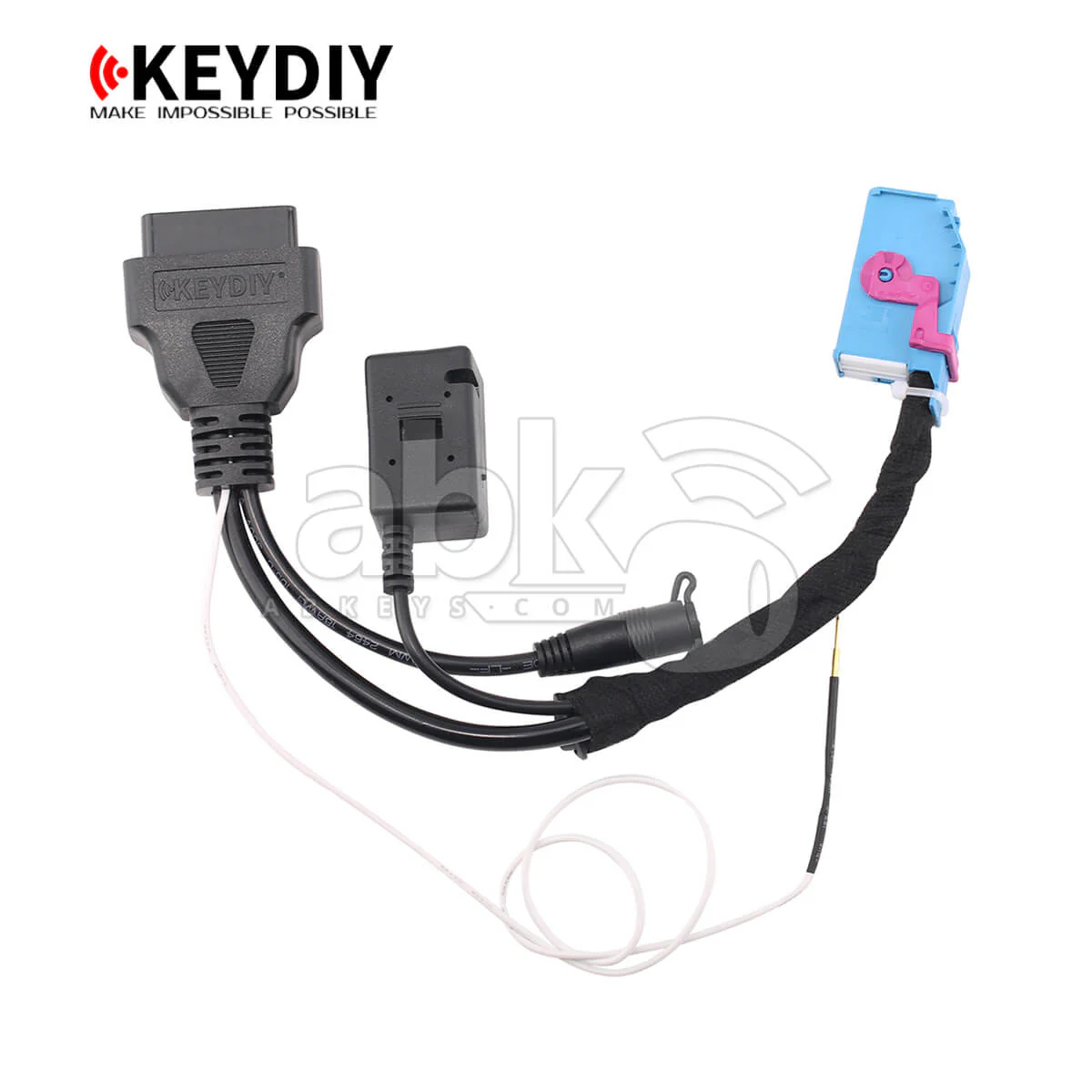

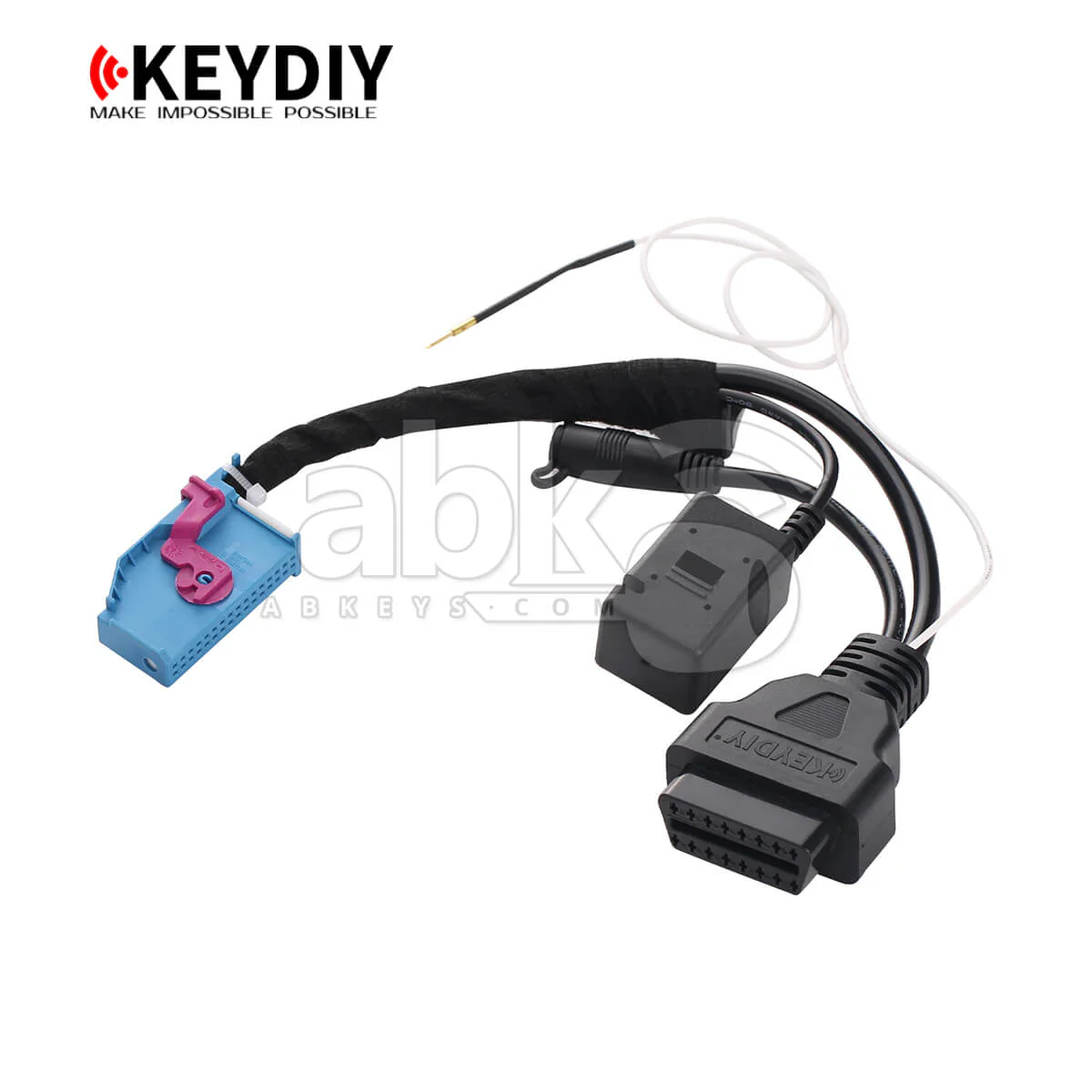

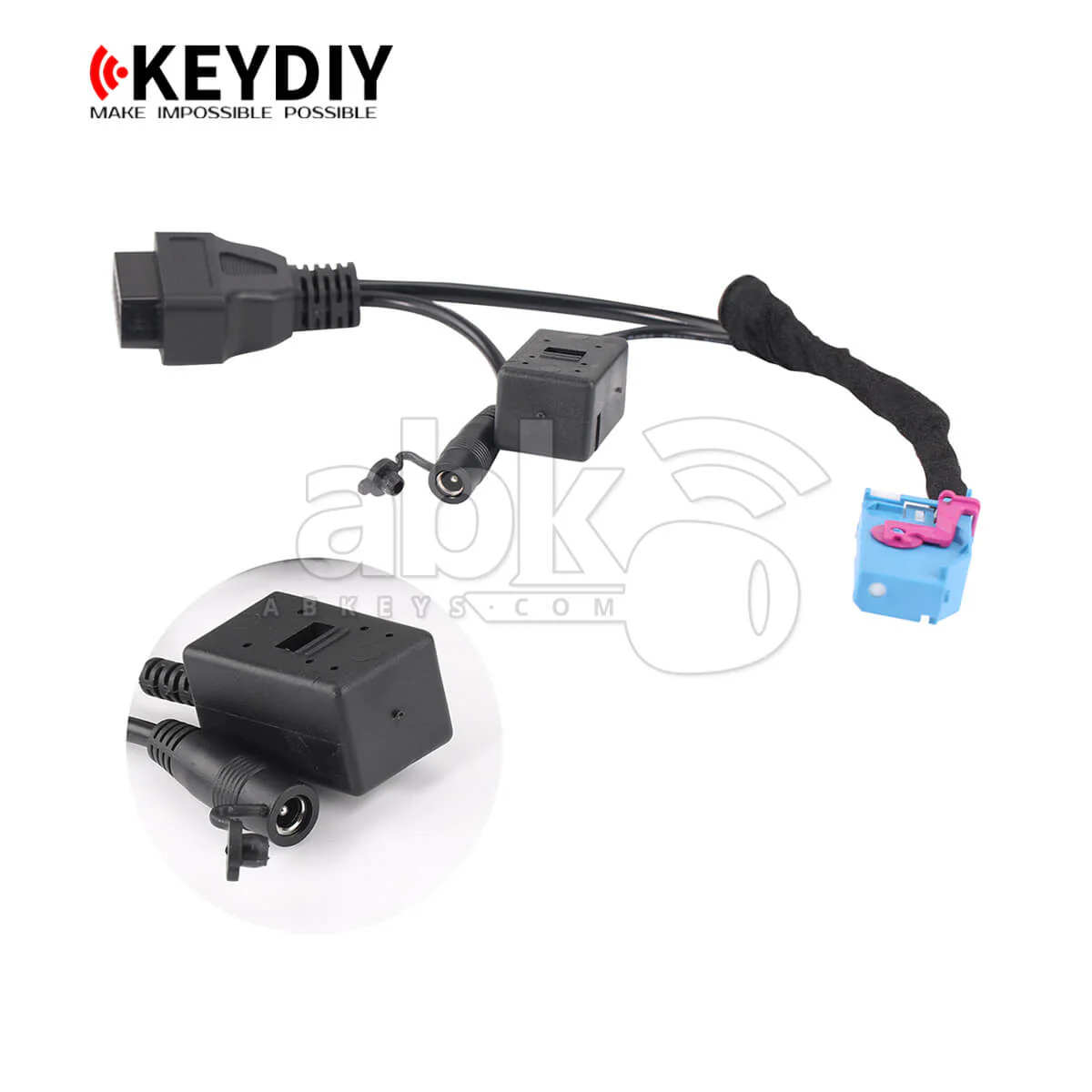

KeyDiy KD-VW01 Cable for VAG IMMO4 4th & 4.5th Generation NEC24C32 / NEC24C64 Cluster Dashboard KD-VW01

KEYDIY KD-VW01 Adapter for VW Overview:

The KEYDIY KD-VW01 Adapter is a dedicated cluster cable for Volkswagen IMMO4 and IMMO5 instrument clusters using NEC + 24C32 and NEC + 24C64 memory. It is designed for stable bench operations, anti-theft status checking, and direct dealer key generation on supported KeyDIY key programmers.

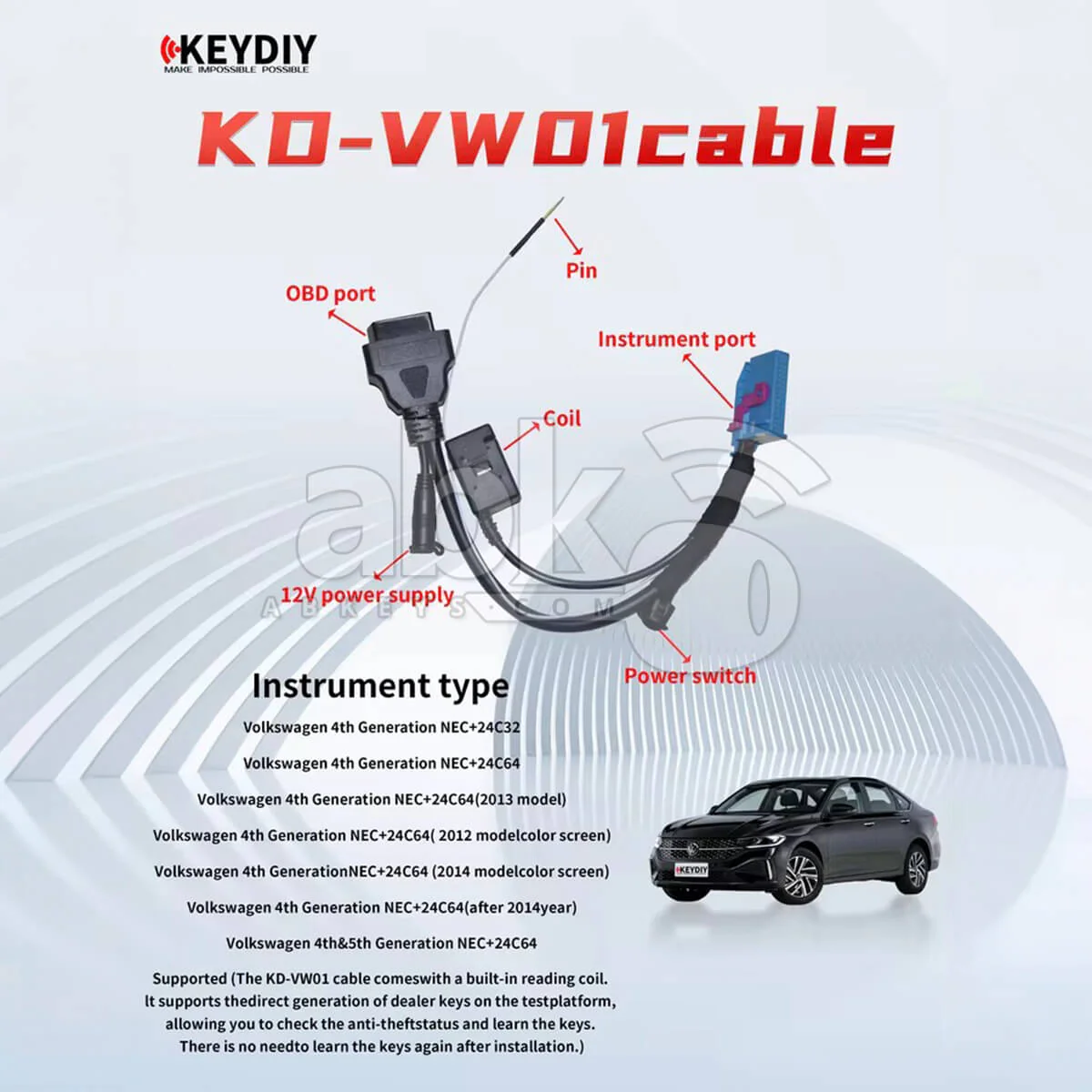

The adapter features a built-in reading coil, eliminating the need for external coils and ensuring reliable cluster communication during key learning and validation procedures.

Compatible KeyDIY Key Programmers

• KD-X2 & KD-MATE
• KD-MAX & KD-MATE
• KD-X4 Key Programmer

Supported Volkswagen Instrument Cluster Types

• Volkswagen 4th Generation IMMO4 – NEC + 24C32
• Volkswagen 4th Generation IMMO4 – NEC + 24C64
• Volkswagen 4th Generation IMMO4 – NEC + 24C64 (2013 model)
• Volkswagen 4th Generation IMMO4 – NEC + 24C64 (2012 color screen)
• Volkswagen 4th Generation IMMO4 – NEC + 24C64 (2014 color screen)
• Volkswagen 4th Generation IMMO4 – NEC + 24C64 (after 2014)
• Volkswagen 4th & 5th Generation IMMO – NEC + 24C64

Key Functions & Capabilities

• Stable bench communication with VW IMMO4 / IMMO5 instrument clusters
• Built-in reading coil for direct immobilizer data access
• Direct dealer key generation on the test platform
• Anti-theft system status verification before vehicle installation
• Key learning and validation during bench operation
• No key relearning required after cluster reinstallation

Professional Workshop Notes

• Designed strictly for bench-based cluster operations
• Reduces learning time and post-installation errors
• Ideal for all-keys-lost and replacement key scenarios
• Not a universal EEPROM or MCU programming cable
• Intended for professional automotive locksmiths and technicians

The KEYDIY KD-VW01 Adapter is an essential professional tool for Volkswagen IMMO4 cluster work, offering reliable communication, simplified dealer key generation, and reduced post-installation steps.

KeyDiy KD-VW01 Cable for VAG IMMO4 4th & 4.5th Generation NEC24C32 / NEC24C64 Cluster Dashboard KD-VW01

Specifications:

Product Code	ABK-1479
Manufacturer	KeyDiy [Genuine]
OEM Part Number	KD-VW01
Condition	Brand New

Supported Models:

BRAND	MODEL	FROM	TO
AUDI	ALL MODELS
SEAT	ALL MODELS
SKODA	ALL MODELS
VOLKSWAGEN	ALL MODELS
ZEDFULL	ALL MODELS

Item Specifications:

• Product Code: ABK-1479
• Manufacturer: KeyDiy [Genuine]
• OEM Part Number: KD-VW01

Fitments:

• AUDI ALL MODELS
• SEAT ALL MODELS
• SKODA ALL MODELS
• VOLKSWAGEN ALL MODELS
• ZEDFULL ALL MODELS
